Hyperscale facilities don’t have room for cooling systems that can’t keep pace with demand. A water cooled chiller is often the backbone of these operations, providing the efficiency and capacity that air cooled systems struggle to match once a facility scales past a certain size. Freedom Mechanical services the large-scale chiller systems behind hyperscale and mission critical facilities, and we’re breaking down what makes water cooled chillers such a strong fit for heavy cooling loads in 2026.

In this guide, you’ll learn:

• What a water cooled chiller is and how it works
• Why water cooled chillers matter so much for hyperscale loads
• 9 best ideas for deploying water cooled chillers at scale
• How water cooled chillers compare to air cooled systems
• Best practices for keeping a water cooled chiller plant reliable

What Is a Water Cooled Chiller?

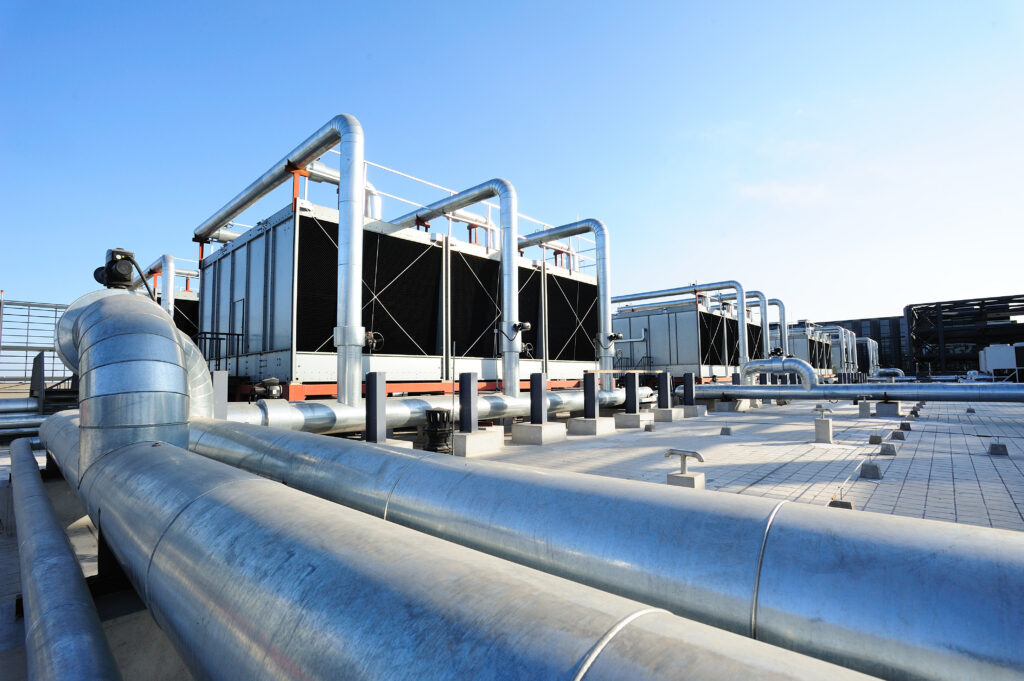

A water cooled chiller removes heat from a facility’s chilled water loop and rejects that heat through a condenser water loop connected to a cooling tower, rather than dumping it directly into outdoor air the way an air cooled chiller does. Water-cooled chillers rely on three interconnected fluid and thermodynamic circuits to operate: the chilled water loop that absorbs heat from the building, the refrigerant circuit inside the chiller itself, and the condenser water loop that carries heat out to the cooling tower. Within the refrigerant circuit, the refrigeration cycle alternates between liquid and vapor states as it absorbs heat at the evaporator and releases it at the condenser. That extra step, using water as the heat rejection medium, allows water cooled chillers to run more efficiently, particularly at the scale hyperscale facilities require, while still delivering the precise temperature control mission critical equipment demands. Unlike comfort air conditioning, a hyperscale chiller system runs continuously under sustained load, so every stage of the cooling cycle, from the compressor through the condenser heat exchanger, needs to hold up to constant duty rather than intermittent use. The waste heat pulled from the chilled water loop is ultimately rejected at the cooling tower rather than staying trapped in the building.

Because the condenser side relies on a cooling tower, water cooled chillers also tend to perform more consistently in hot climates, where an air cooled unit’s efficiency can drop sharply as ambient temperatures climb. Beyond data centers, the same technology supports industrial process cooling and district cooling systems, anywhere large, continuous cooling loads make water based heat rejection more practical than air.

Why Water Cooled Chillers Matter for Hyperscale Loads

Efficiency gains that seem small on paper become significant once they’re multiplied across a facility running tens of megawatts of critical load. Small improvements in chiller performance translate into meaningful savings in energy consumption at that scale, without sacrificing the cooling capacity a hyperscale facility depends on.

According to Data Center Dynamics’ reporting, citing Johnson Controls, for every 1°C increase in chilled water temperature, a typical chiller sees approximately 2 to 3 percent savings in power consumption. For a hyperscale facility running a large water cooled chiller plant around the clock, that kind of efficiency curve adds up to real operating cost differences over a year.

9 Best Ideas for Water Cooled Chillers in Hyperscale Facilities

Here are the strategies that consistently help hyperscale operators get the most out of their water cooled chiller plants.

1. Right-size the chiller plant for future load: Designing with headroom avoids costly retrofits as workloads and rack densities increase.
2. Pair chillers with cooling towers sized for peak conditions: Undersized towers limit chiller efficiency exactly when it matters most, during peak summer loads.
3. Optimize chilled water temperature setpoints: Raising setpoints where equipment allows can meaningfully reduce energy use without compromising reliability.
4. Use variable speed pumping: Matching pump speed to actual load reduces energy waste compared to constant speed systems.
5. Implement water treatment programs: Proper treatment protects both chiller and cooling tower components from scale and corrosion over time.
6. Design for N+1 or higher redundancy: Hyperscale facilities can’t afford a single point of failure in the chiller plant.
7. Leverage free cooling and economization: Favorable outdoor conditions can offset mechanical cooling demand for a meaningful part of the year in many climates.
8. Monitor performance continuously: Real-time monitoring catches efficiency drift before it becomes a larger problem.
9. Plan maintenance around load cycles: Scheduling major maintenance during lower demand periods reduces operational risk.

Water Cooled vs. Air Cooled Chillers

Choosing between water cooled and air cooled systems depends heavily on facility size, climate, and water availability. Water-cooled chillers typically cost more upfront to install, but for facilities operating many hours per year, they can lead to lower lifecycle costs despite that higher initial investment. For a large enough facility running around the clock, that efficiency advantage can translate into water-cooled chillers saving nearly $300,000 annually compared to an equivalent air cooled setup, depending on load, climate, and local utility rates.

Feature	Water Cooled Chiller	Air Cooled Chiller
Efficiency at Scale	Generally higher, especially for large loads	Lower at very large scale
Water Use	Requires cooling tower and water treatment	Minimal to none
Climate Sensitivity	Performs consistently across most climates	Efficiency drops in high ambient heat
Best Fit	Hyperscale and large mission critical facilities	Smaller facilities, water-restricted regions

Many large facilities end up using water cooled chillers for their primary load, sometimes supplemented with air cooled units for redundancy or specific zones.

Best Practices for Water Cooled Chiller Reliability

A well maintained water cooled chiller plant depends on a few consistent habits.

• Schedule regular water treatment and testing: This protects both the chiller and cooling tower from scale, corrosion, and biological growth.
• Perform eddy current testing on tubes: Catching early signs of tube degradation prevents unplanned failures and extends equipment life.
• Keep cooling towers clean and well maintained: A poorly maintained tower drags down chiller efficiency even when the chiller itself is in good condition.
• Track key performance metrics over time: Monitoring approach temperature and efficiency trends helps catch problems before they cause downtime.
• Plan for redundancy and backup capacity: Hyperscale facilities should always have a plan for maintaining cooling if one chiller needs service.

We’re proud to serve business and facility owners in West Jordan, Utah, and nearby communities with water cooled chiller service, preventative maintenance, and equipment upgrades built for hyperscale and mission critical facilities. West Jordan’s growing commercial and data center presence makes reliable chiller plant performance especially important for the businesses operating there.

Frequently Asked Questions

Facility managers evaluating water cooled chillers for hyperscale loads tend to ask a similar set of questions. Here are direct answers to the ones we hear most often.

Are water cooled chillers more efficient than air cooled chillers?

Generally, yes, particularly at large scale and in hotter climates. Water cooled chillers use a cooling tower to reject heat, which tends to be more efficient than rejecting heat directly to outdoor air, especially once ambient temperatures climb.

How much water does a water cooled chiller plant use?

Water use varies by size, climate, and run hours, but water cooled systems generally use significantly more water than air cooled alternatives. Facilities in water-restricted regions should weigh this tradeoff carefully against the efficiency gains.

Can a water cooled chiller support hyperscale AI workloads?

Yes, and many hyperscale facilities rely on water cooled chiller plants as the backbone of their cooling infrastructure, often paired with liquid cooling at the rack level for the highest density equipment.

How long do water cooled chillers typically last?

With proper maintenance, water cooled chillers commonly last 20 to 25 years or more, though usage patterns and water treatment quality significantly affect actual lifespan.

What maintenance does a water cooled chiller plant need?

Regular water treatment, tube testing, cooling tower cleaning, and performance monitoring are all essential. Neglecting any of these can lead to reduced efficiency or unplanned failures over time.
